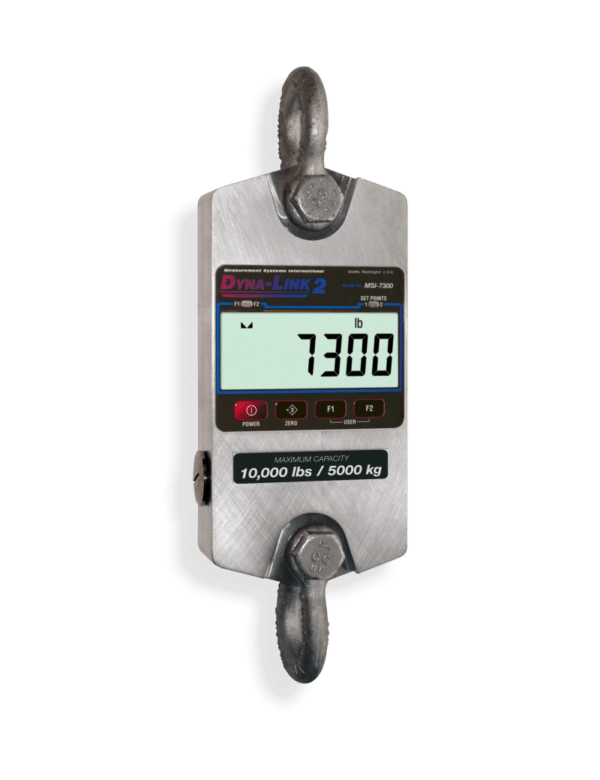

MSI-7300 Dyna-Link 2 Crane Scale

Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby shackles and a variety of accessories and options, including wireless connectivity with an MSI-8000 RF remote display. The display is enhanced by a large 1.22 inch five-digit LCD with resolution settings up to 5,000 divisions and accuracy over a wide capacity range.

Documentation

Specifications
Instructions Manual

Product Details

Capacity and Accuracy:

  • 500kg x 0.2g
  • 1,250kg x 0.5kg
  • 2,500kg x 1kg
  • 5,000kg x 2kg
  • 12,500kg x 5kg
  • 25,000kg x 10kg
  • 50,000kg x 20kg

Description:

  • Five-digit LCD display, 31mm
  • Displayable units: pounds, kilograms, kilonewtons, tons, metric tons
  • Premium aircraft-grade aluminum with an anodized finish and gasket
  • NEMA 4 and IP 65 protection rating
  • Low power consumption allows up to 300 hours of operation with standard batteries.
  • Power: 2 x ‘C’ alkaline batteries for capacities up to 5,000 kg
  • Power supply: 2 D alkaline batteries for capacities ranging from 12,500 to 50,000 kg
