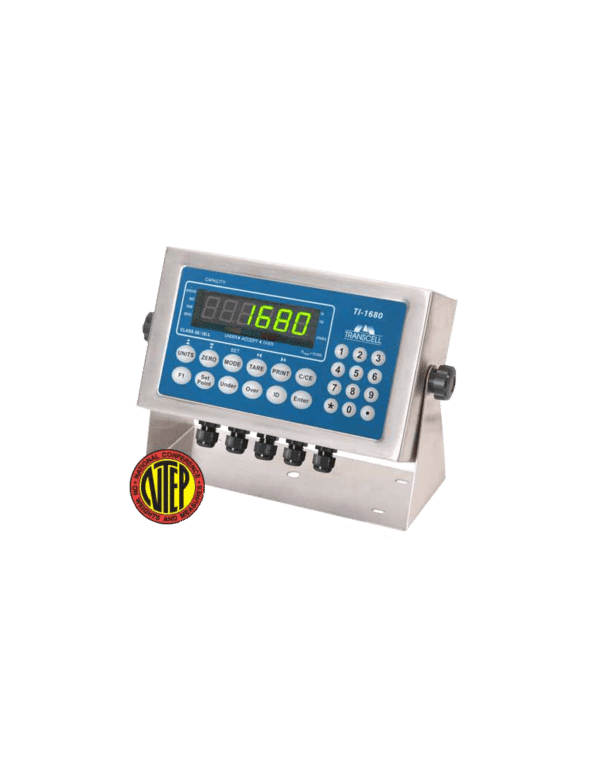

Transcell TI-1680 Indicator
The TI-1680 is an NTEP and Canadian certified digital indicator housed in a stainless steel case. This digital indicator is designed to support many applications for the installer, while maintaining simplicity for the operator.
Configure the ‘F1’ key for Peak, Totalization, Hold and Actual Weight or disable the ‘F1’ key to simplify operations. Dedicated keys are provided for checkweighing and discontinuous weighing. The large LED display is easy to read. The stainless steel construction makes it resistant to washing.
Standard communications include two RS-232 ports, one of which is configurable to USB.
Documentation
Product Details
Description:
- Displays up to 50,000 ticks
- Two full-duplex RS-232 serial ports (one port can be configured as USB)
- NEMA 4x / IP65 stainless steel enclosure
- Heavy duty swivel mounting bracket
- Large, easy-to-read LED display
- GROSS/NET/TARE – “Print Ticket Mode” – 6-digit identification number
- Drives up to twelve 350 Ω load cells
- Standard time/date
- Units: lb, kg, g, oz and custom
- Applications: Parts Counting, Remote Display, Peak Hold, Checkweighing, Batching, Accumulation, Self Diagnosis, Truck In/Out
- Key functions: Units, Zero, Mode, Tare, Print, C/CE, F1, Set Point, Under, Over, ID, Enter, Dec. Pt., * , 0-9
- Annunciators: Gross, Net, Tare, Zero, Under, Accept, Over, lb, kg, Stable, 01 – 04
- Power supply (standard): 100-240 VAC, 50/60 Hz
Warranty:
- 1 year (limited)
