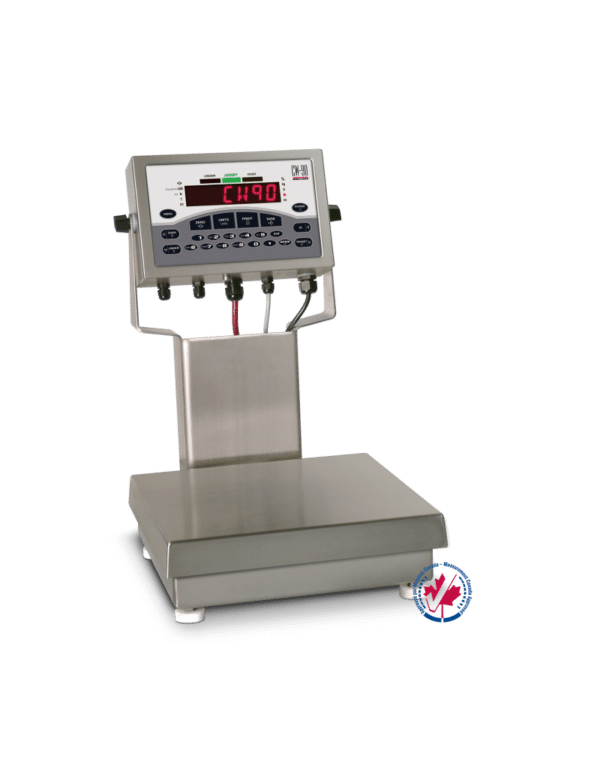

Rice Lake CW-90 Bench Scale
Rice Lake’s CW-90 checkweigher is designed to help speed up your weighing process and reduce production downtime. Its ease of use, real-time data collection and rugged stainless steel construction make the CW-90 the equipment of choice for operators, quality control and maintenance departments. The CW-90 is available at a competitive price for all light industrial environments.
Documentation
Specifications
Product Details
Capacity and Accuracy:
- 2.5kg x 0.5g
- 5kg x 1g
- 10kg x 2g
- 25kg x 5g
- 50kg x 10g
Platform dimensions:
- CW-90 1010 models: 254mm x 254mm / 10″ x 10″
- CW-90 1212 models: 305mm x 305mm / 12″ x 12″
Description (scale):
- Aluminum force sensor, environmentally sealed
- 304 stainless steel
- 5 point overload protection
Description (indicator):
- Membrane keyboard composed of: ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, 0-9, DECIMAL, CLEAR, ENTER, MENU, POWER
- 304 stainless steel, IP66 rated
- Gore™ PreVent® Breather
- Storage of up to 50 IDs
- Unit of measure: kg, g, lb, oz, lb/oz
- High Intensity LED Display
- Battery backed time and date
- Two bi-directional serial ports
- Configurable print formats
- Audit trail tracking
- Four configurable digital I/Os
Warranty:
- 2 years
Measurement Canada:
- #AM-5710 (indicator)
- #AM-5082 (scale)
