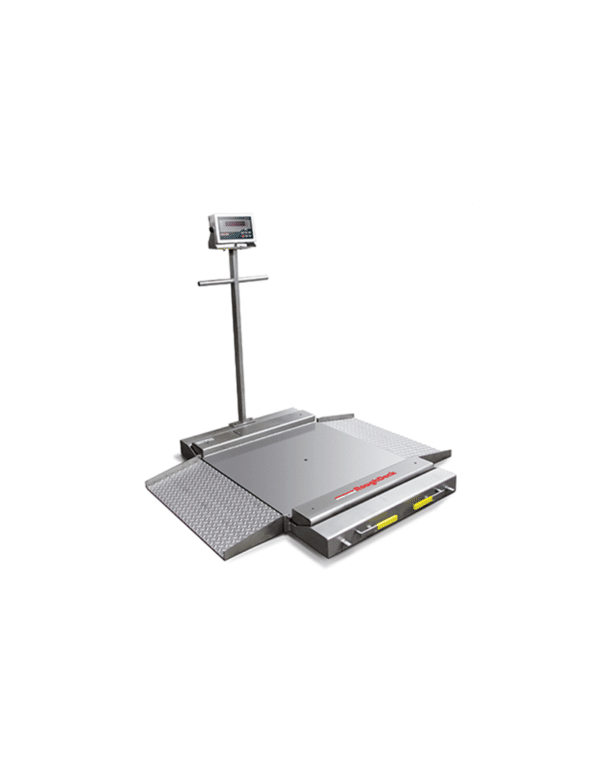

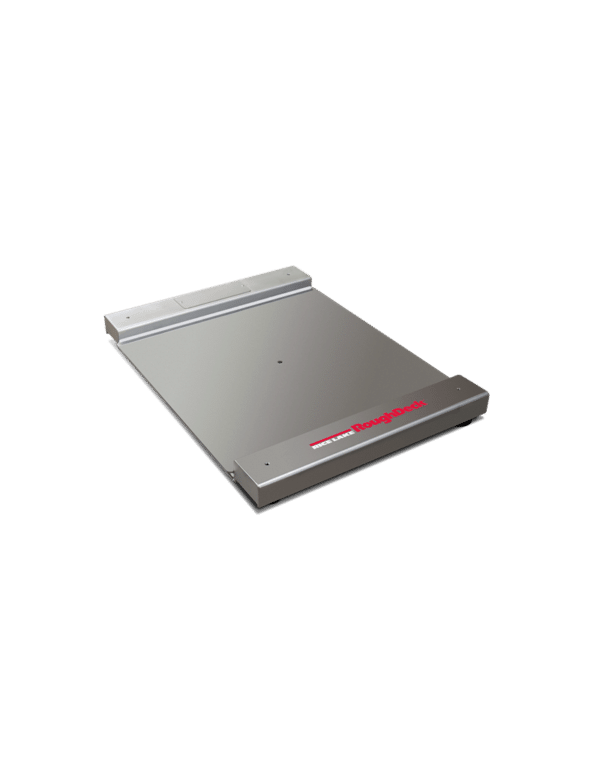

Rice Lake BDP Roughdeck Barrel & Drum Scale

When great flexibility is required to weigh bulky items such as barrels and drum pallets, the low profile design of the RoughDeck® BDP floor scales and optional access ramps allow for effortless loading and unloading . Dynamic side rails allow items larger than standard scale dimensions to be weighed precisely where they are on the scale. Design options include threaded mild steel or smooth stainless steel top plates, as well as weld-sealed or environmentally friendly load cells to meet a wide range of application conditions.

Documentation

Specifications

Product Details

Capacity:

  • 500 kg to 1,250 kg / 1,000 lb to 2,500 lb

Platform dimensions:

  • 30″ x 31″ / 76.2cm x 78.7cm
  • 36″ x 37″ / 91.4cm x 94.0cm

Description:

  • Living siderails
  • Top access for leg adjustment (holes are 1/2-13 threaded for scale lifting)
  • Four adjustable SUREFOOT™ stainless steel feet
  • JB4SS TuffSeal® Stainless Steel Junction Box, NEMA Type 4X with Nameplate
  • Threaded top plate
  • Alloy steel load cells

Warranty:

  • 3-year limited warranty
